Ultrasonic CouplantsBack
Echo 8 HT
Echo 8 HT is a high temperature, slow drying ultrasonic couplant with an excellent safety profile and is compatible with all metals and most plastics.
Echo 8 HT is a high temperature, slow drying ultrasonic couplant with an excellent safety profile and is compatible with all metals and most plastics.
PRODUCT DESCRIPTION
Echo 8 HT covers a broad range of ultrasonic aw and thickness gaging applications andleaves minimal residue.
Echo 8 HT pumps easily in automated systems and is an excellent lubricant.
Echo 8 HT provides excellent corrosion inhibition on ferrous metals and is compatible with all metals and most plastics.
Echo 8 HT has low toxicity and is essentially non-irritating.
Key Benefits :
- Two viscosities (Grades 1 & 4)
- Little or no residue
- Low toxicity
- Non-irritating
- Silicone-based
- Broadest operating range
- Three Viscosities: thin to very thick liquid for AUT and MUT
- Minimal smoke
- Excellent lubricant
- Auto-ignition temperature: 850°F/ 454°C
Operating Range:
- -50° to 800°F / -45° to 425°C
Auto-ignition:
- 850°F / 454°C
Viscosity:
- Grade #1 ~ 100 cST
- Grade #4 ~ 400 cST (standard)
- Grade #6 ~ 850 cST
- Grade #10 ~ 5,000 cST
Halogens and Sulfur:
- Less than 50 ppm
Sound Velocity:
- 4900 ft /second (1494 m/sec)
Specific Gravity:
- 1.07

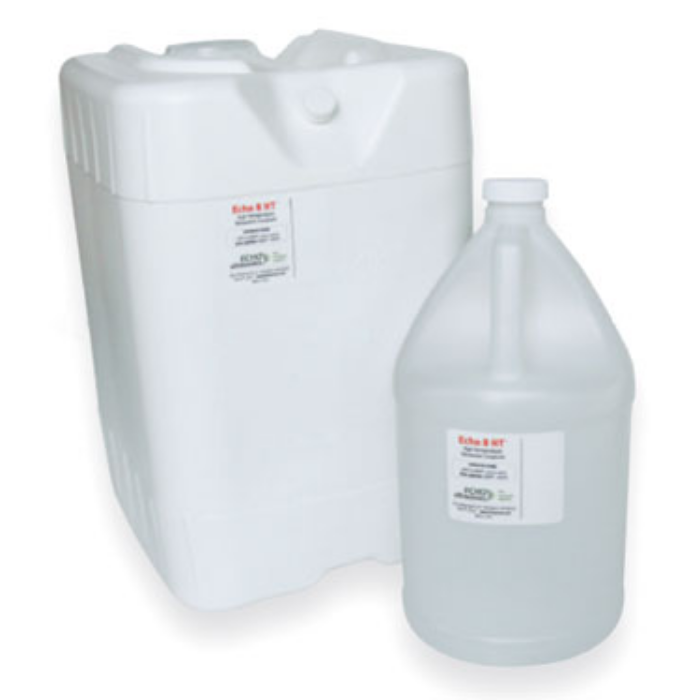

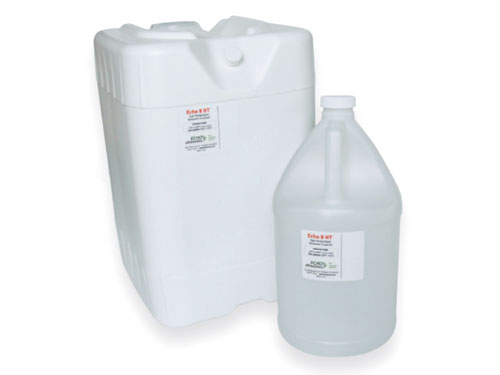

PACKAGING
- 1 gallon (US) / 3.8 liter rigid plastic container
- 5 gallon (US) / 19 liter rigid plastic container
Echo8HT.pdfDownload
