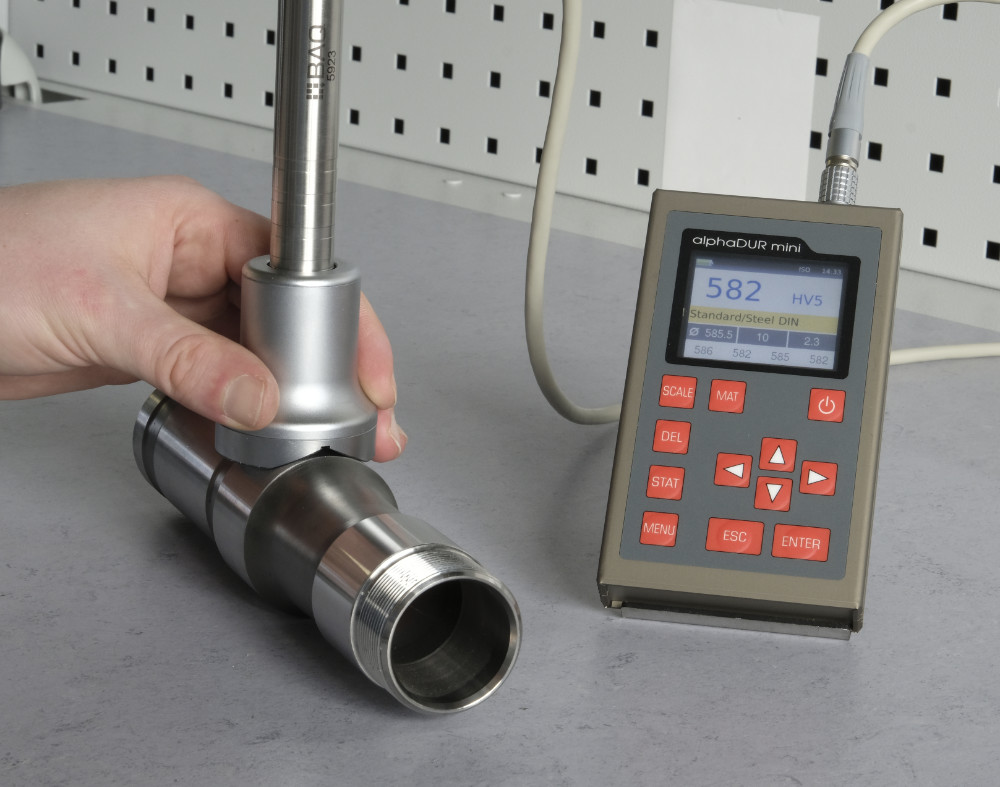

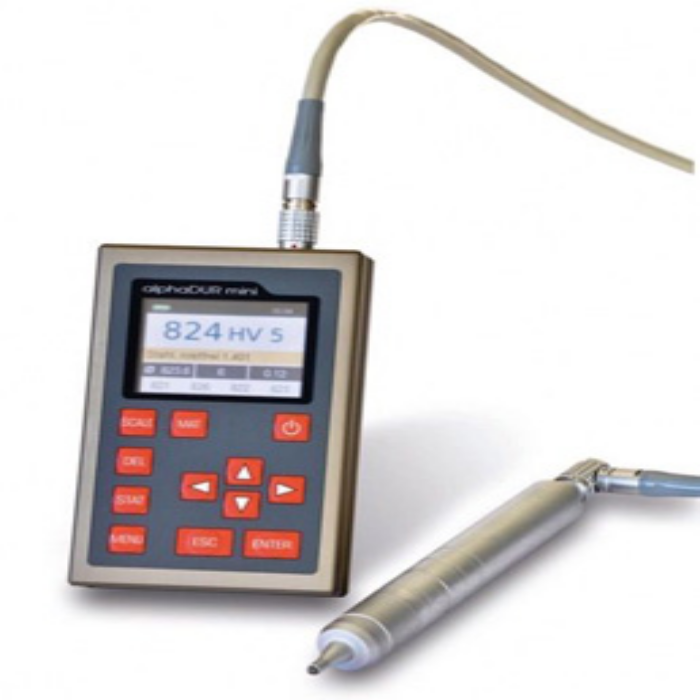

alphaDUR mini (UCI hardness tester)

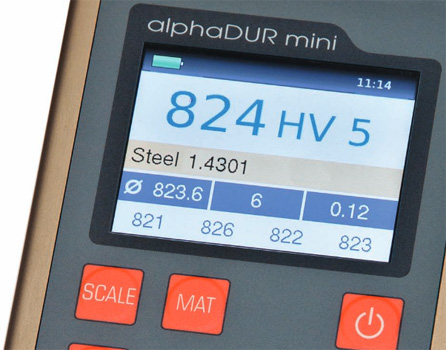

The alphaDUR mini is the small and handy variant of the alphaDUR which has been successfully used in hardness testing since many years. The technology is identical and the accessories are compatible. The operation of the alphaDUR mini is very easy because all information is shown on the large display. Hardness scale and material can quickly be chan-ged by special keys. Measurements can be done fast and accurate. The measured value is dis-played directly after the test load has been applied. A test load between 1 and 10 kg can be chosen depending on the application and the sample surface.
The alphaDUR mini is the small and handy variant of the alphaDUR which has been successfully used in hardness testing since many years. The technology is identical and the accessories are compatible. The operation of the alphaDUR mini is very easy because all information is shown on the large display. Hardness scale and material can quickly be chan-ged by special keys. Measurements can be done fast and accurate. The measured value is dis-played directly after the test load has been applied. A test load between 1 and 10 kg can be chosen depending on the application and the sample surface.
Scope of delivery :
Basic device with built-in battery, USB cable, USB charging adapter, case, manufacturer certificate and manual
Optional accessories :

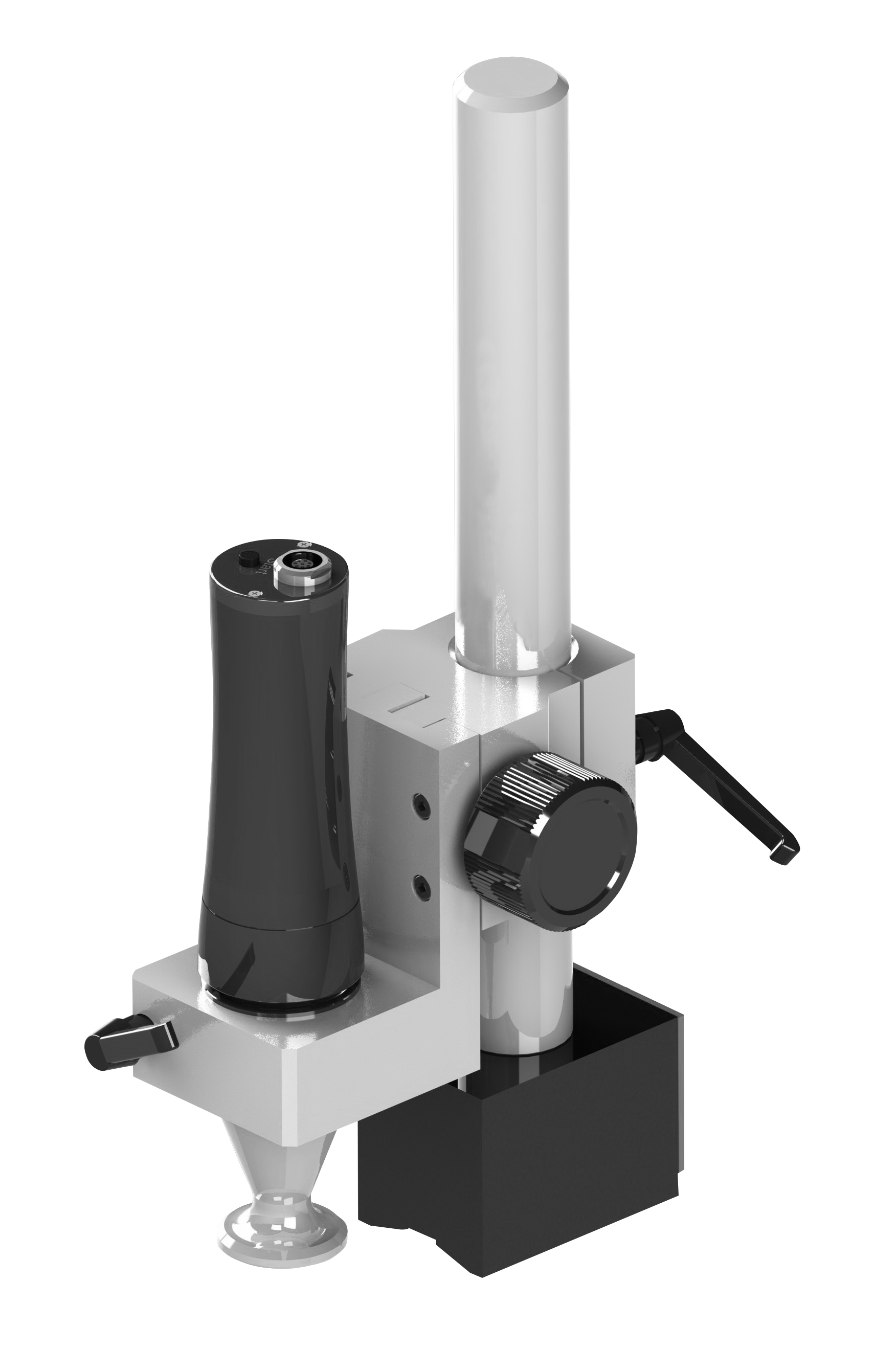

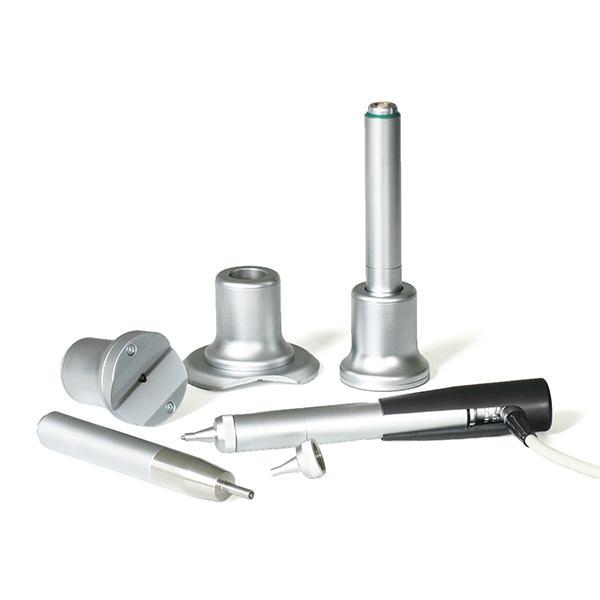

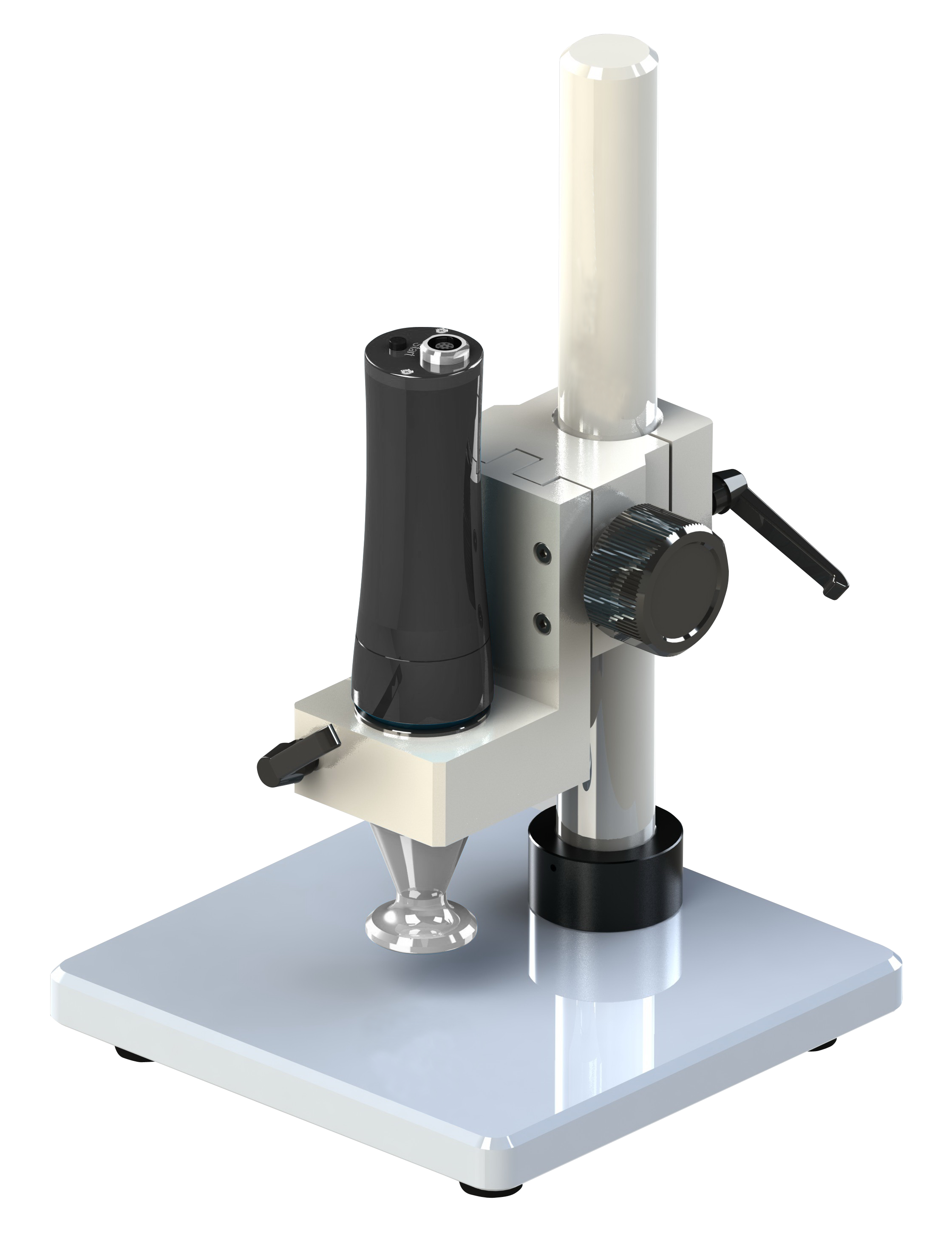

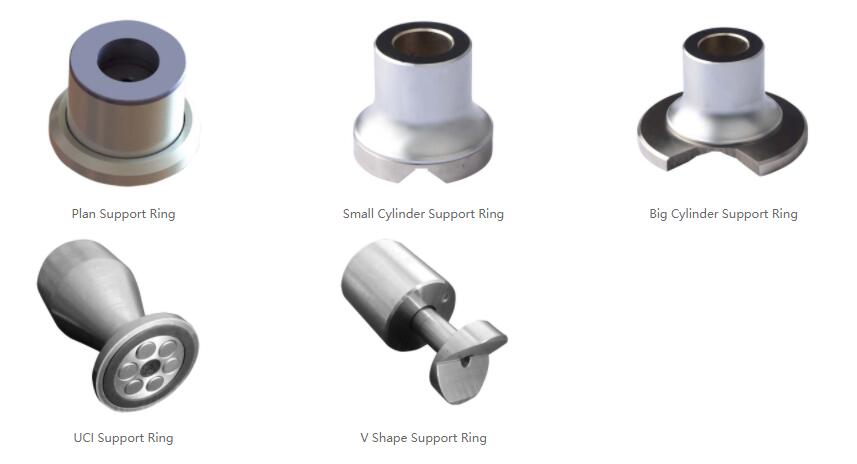

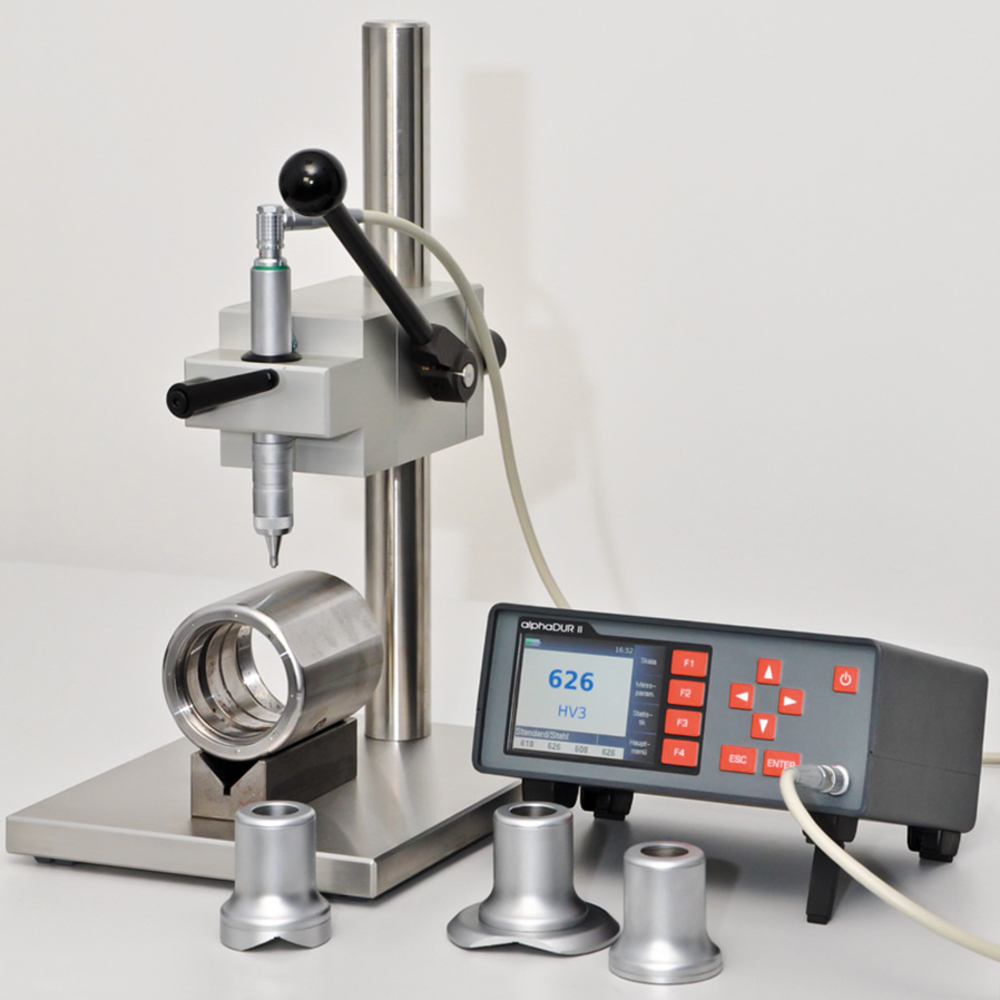

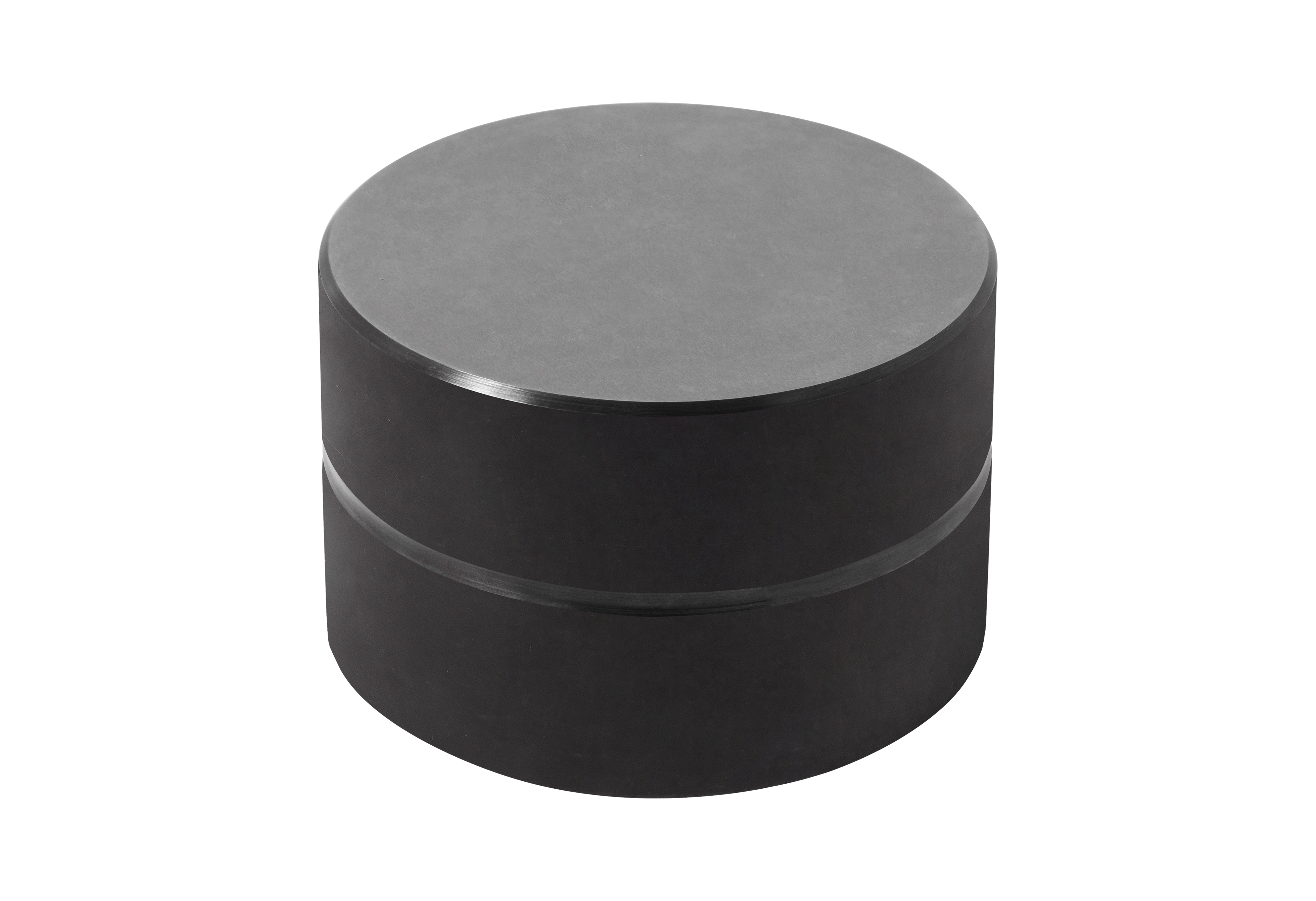

Probe support for flat and curved surfaces, high precision stand, probe hand-le, portable mini printer, special probe SL for measurements at location difficult to access, hardness test blocks (Ø 90x16mm) with MPA/DKD certificate
Application range :

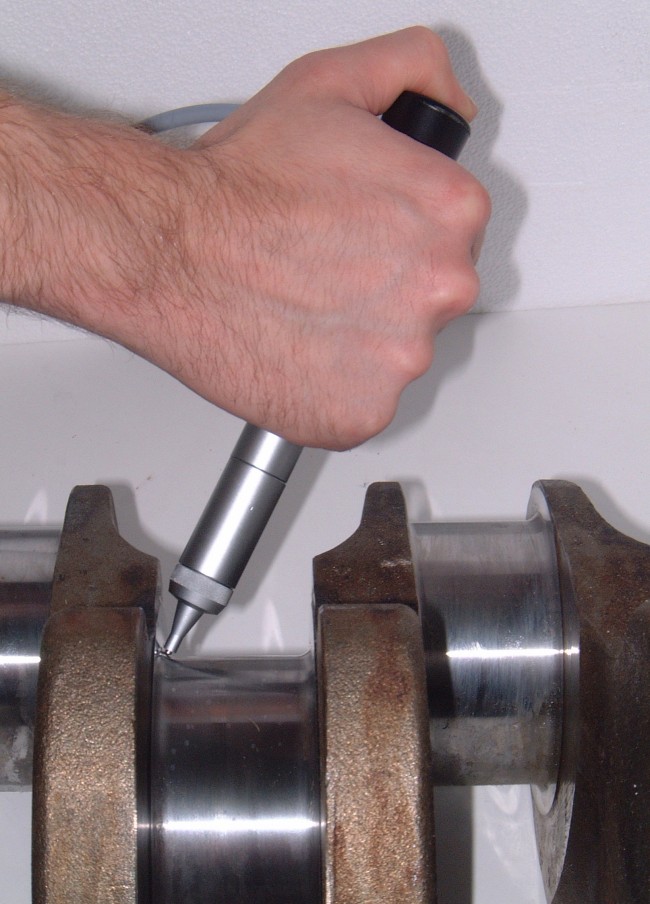

Incoming goods inspection.Hardness testing of metals in production.Testing of machine parts, weld seams, coatings and hardened parts even at difficult to access locations and at any angle.
- fast and easy hardness testing
- measuring method according to DIN 50159 and ASTM A1038
- robust metal casing
- large colour display
- built-in Li-ion battery
- extensive storage and statistical functions
- USB interface and PC software
Technical data :
Hardness scale : HRC, HV, HB, HRB and tensile strength
Test load : 10, 20, 30, 49 or 98 N, depending on the UCI probe
Display : colour LCD 320 x 240 pixels
Interface : USB
Data memory : 100,000 data records with date, time and GOOD / BAD rating
Statistics : average value, minimum, maximum, standard deviation
Battery : built-in Li-ion battery, battery life approx. 12 h, rechargeable by charging adapter or PC-USB
Dimensions : 135 x 80 x 23 mm
Weight : Device 320 g, Probe 190 g. Minimum sample thickness approx. 4–6 mm
