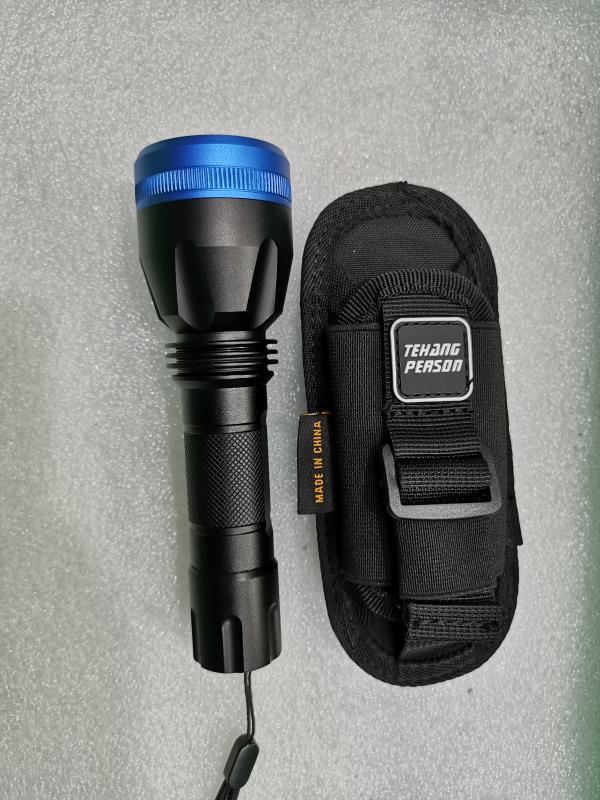

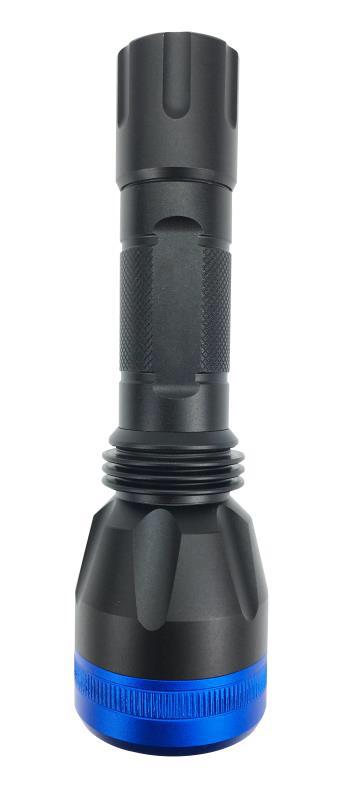

Torch IT365 Features

50. Instant maximum output without pre-heating
50. Rugged, extremely light and handy design
50. Powered by one rechargeable lithium-ion battery with large capacity
50. Anodized aluminum lamp body minimizes corrosion and stands up to years of heavy duty
50. The intensity of spotlight version Torch IT365/SS is 20,000uW/cm² and floodlight version of 6,000uW/cm² at 15 inches (38 cm)
50. Flood and spot LED reflector are interchangeable
50. Compatible with spray can holder and tripod
50. Each lamp comes with a certificate of compliance for both output and wavelength measurements
50. 100% solid state circuit ensuring working steadily in strong magnetic field
50. Safe and pure UV-A spectrum in the range of 365-370nm with no UV-B and UV-C

________________________________________________________________________________________________

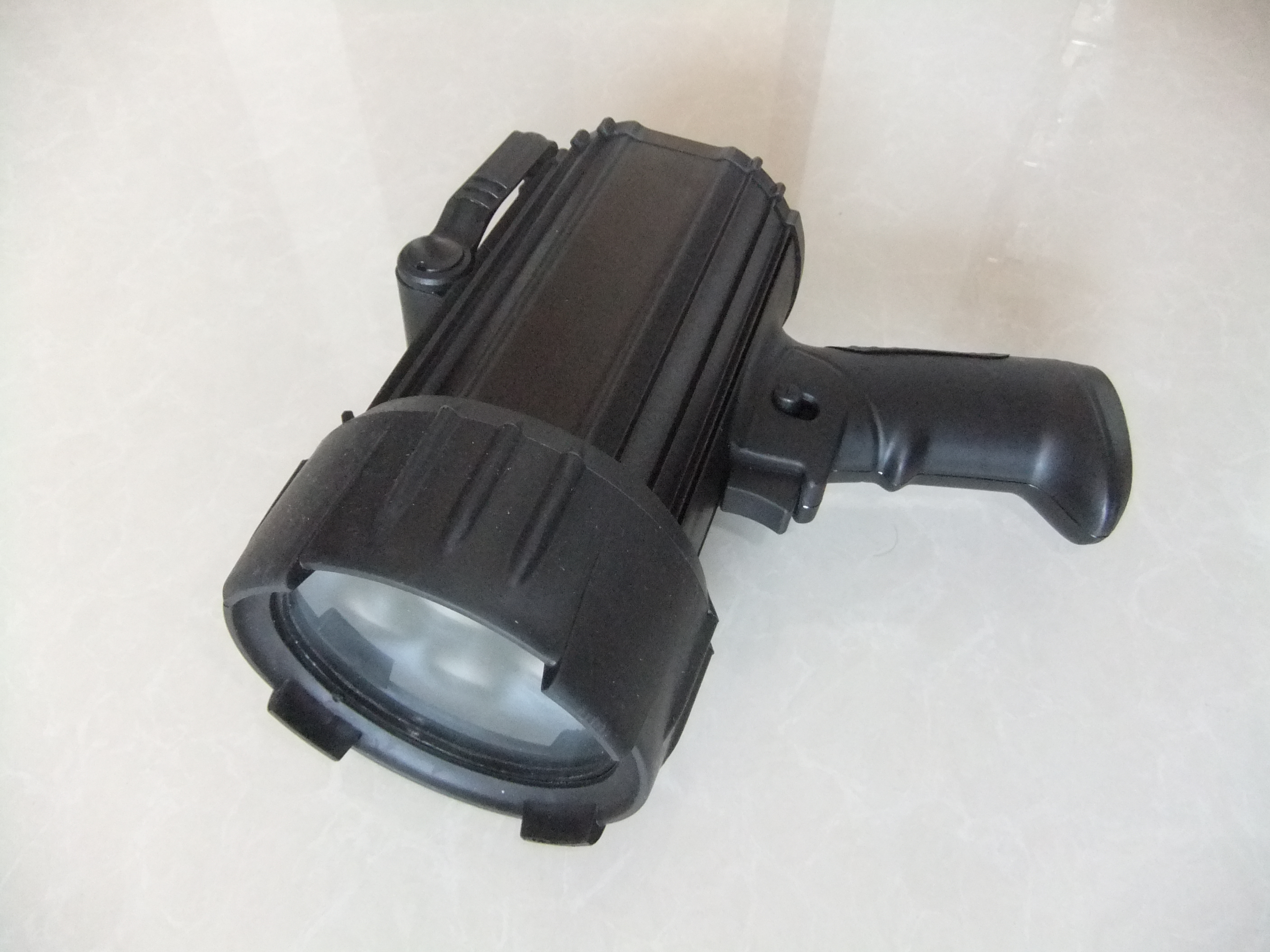

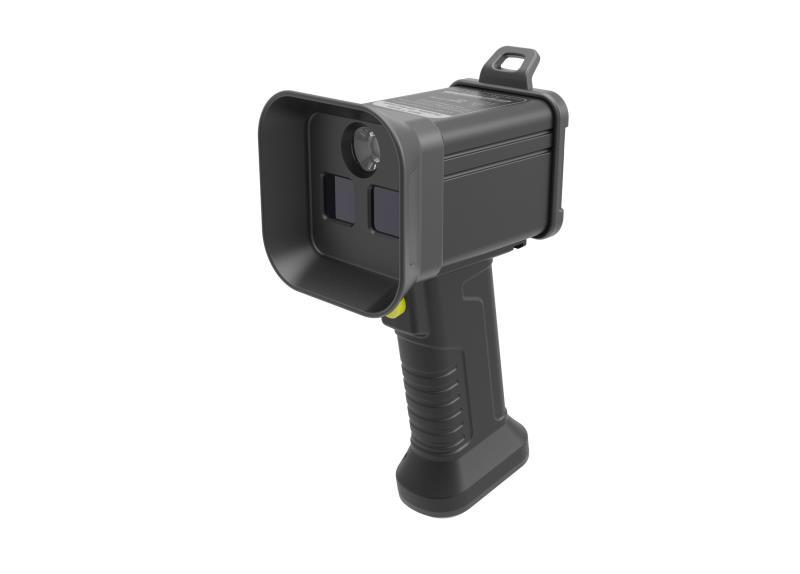

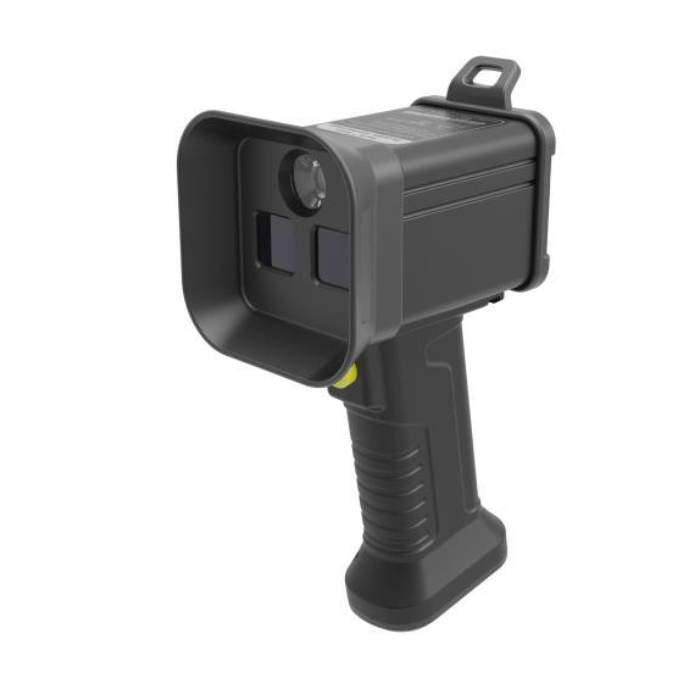

Spirit - UV LIght - Features

50. Compliance with all international standards and regulations, e.g. ASTM E3022, RRES 90061, AITM6-1001
50. Explosion proof certified per EU Directives
50. Super light and handy design
50. White light and UV light are easily switchable
50. Power Supply: Battery or Mains
50. 100% solid state circuit ensuring working steadily in strong magnetic field
50. Safe and pure UV-A spectrum in the range of 365-370nm with no UV-B and UV-C

__________________________________________________________________________________________

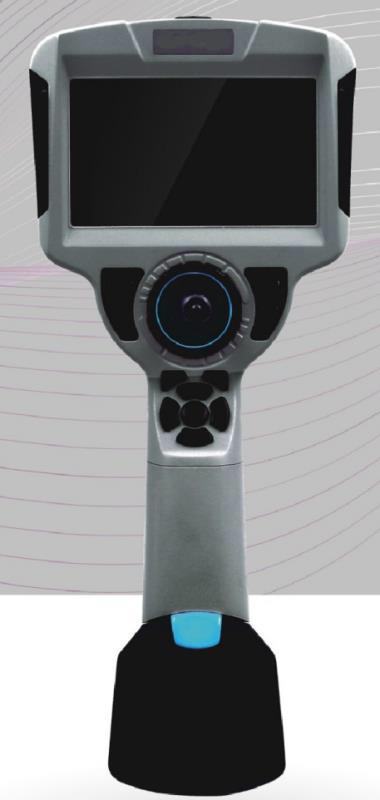

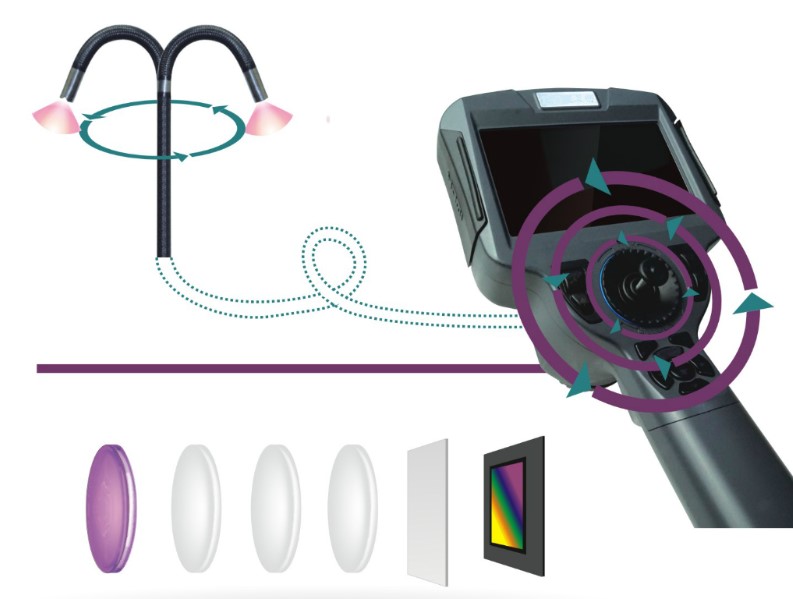

UV/Scope
UV/Scope UV digital high-definition videoscope apply 385nm UV LED to perform UV visual inspection of the work piece after fluorescent magnetic particle inspection. The fluorescent material in the fluorescent magnetic particles emits electron transition under the irradiation of the ultraviolet lamp, and emits a yellow-green visible light of 510 to 550 nm. In the magnetic particle inspection, when the work piece is magnetized, if there are cracks, pores or other defects on the work piece surface or near surface, the leakage magnetic field at the defect will attract and collect the magnetic powder applied during the flaw detection to form a magnetic mark. This kind of magnetic trace with fluorescent substance under the irradiation of ultraviolet light lamp stimulates yellow-green visible light which is very sensitive to human eyes, so as to achieve the purpose of detection.

Product features
?Hand-held integrated design, easy to carry, easy to operate, ergonomic design concept, beautiful appearance, perfect use.
?The camera shell is made of titanium alloy, multi-layer tungsten wire braiding test line is more anti-corrosive and durable.
?Electric joystick control, 360°rotation, flexible and labor-saving operation, improve work efficiency.
?PT and MT endoscopic fluoroscopy are performed under UV light to emit a wide-area accurate UV 385 nm band.
?With 4 high-intensity UV LED illumination sources, the illumination intensity reaches 1800um/cm, and it can get all the inspection pictures, such as large engine cylinders and aircraft landing gears, under the huge cavity inspection environment

___________________________________________________________________

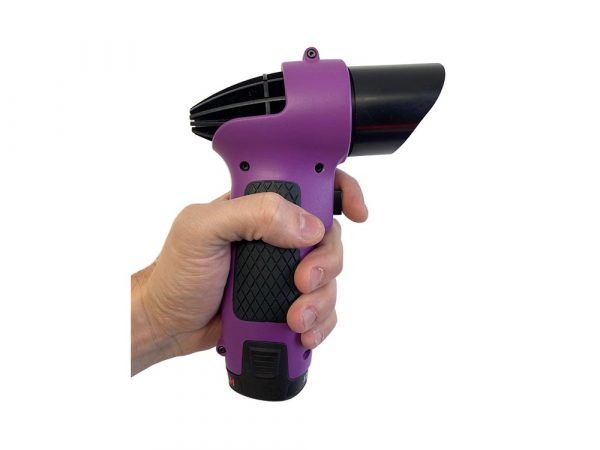

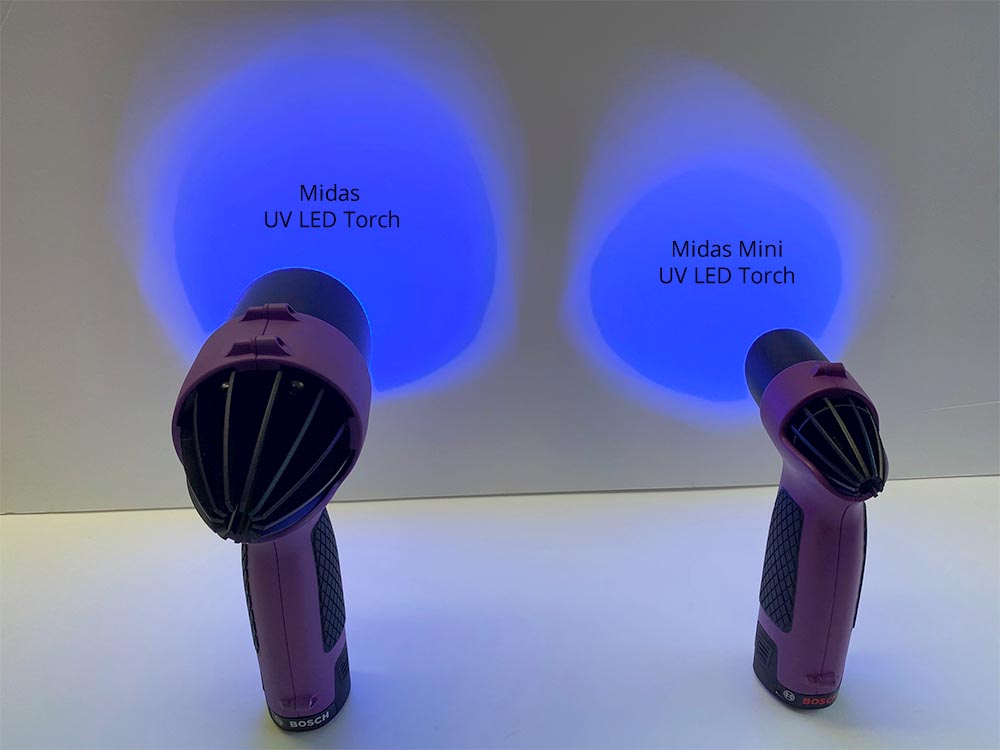

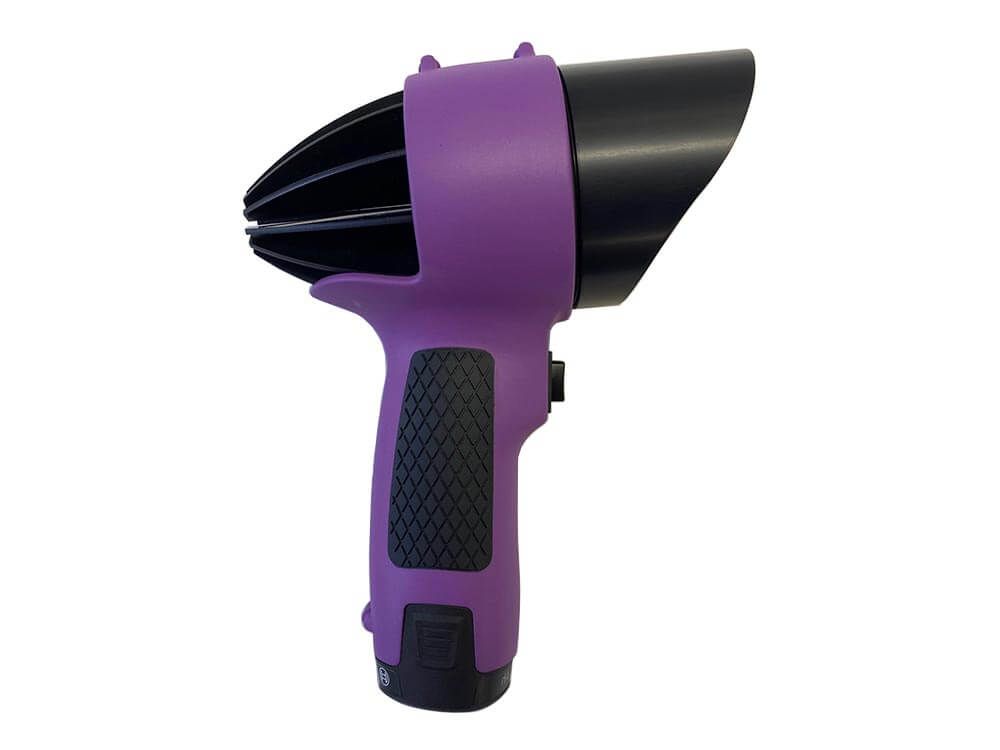

Mini UV-A LED Torch

High-performance UV-A inspection torch for professional UV fluorescent inspection applications including detection of cracks, leaks, hydrocarbons, clearcoats, security markings and more.

• High UV-A output at 365nm
• > 1,200 uW/cm² at 38cm (15″)
• Bosch 12V battery technology
• Flashes when the battery needs replacing
• 2 batteries, charger, UV specs and case
• Conforms with RRES 90061, ASTM E3022 and Airbus AITM6-1001
• ------------------------------------------------------------------------------------------------------------

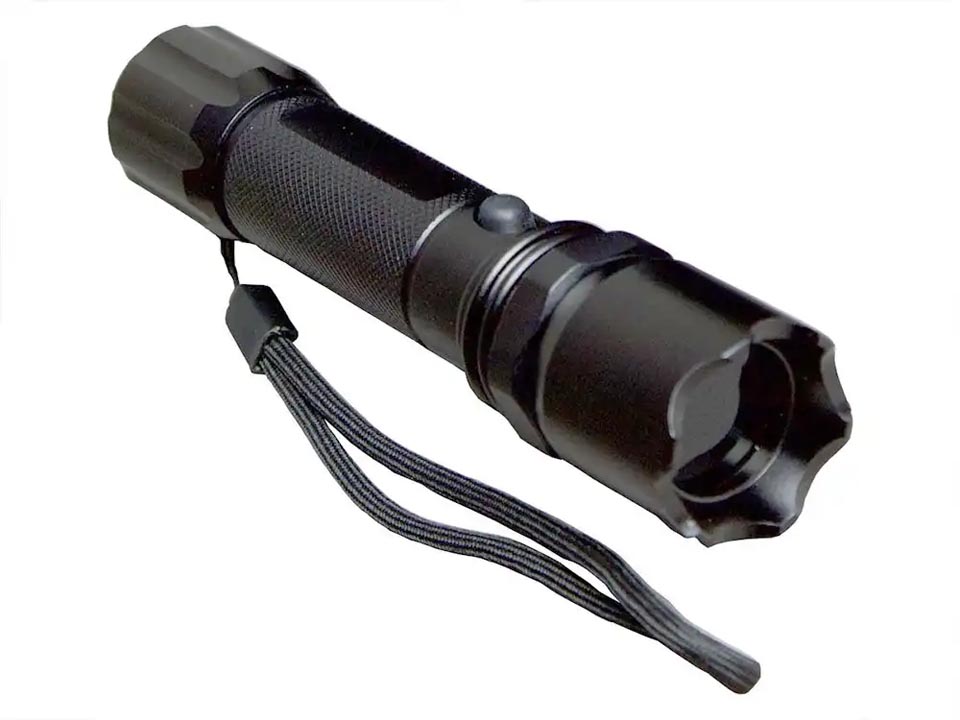

• 5W LED Torch

  Hand-held, re-chargeable UV LED torch to for inspection of small components or hard to reach areas.

• High UV-A output at 365 nm
• Produces bright fluorescent effects
• Contains UV-A long-life LED
• Includes 2 x batteries, charger and pouch

• Includes operating and safety manual, including maximum permissible exposure times for the skin and eyes to help ensure safe use and compliance with your legal obligations.
