Electromagnetic & Permanent Magnetic Yoke

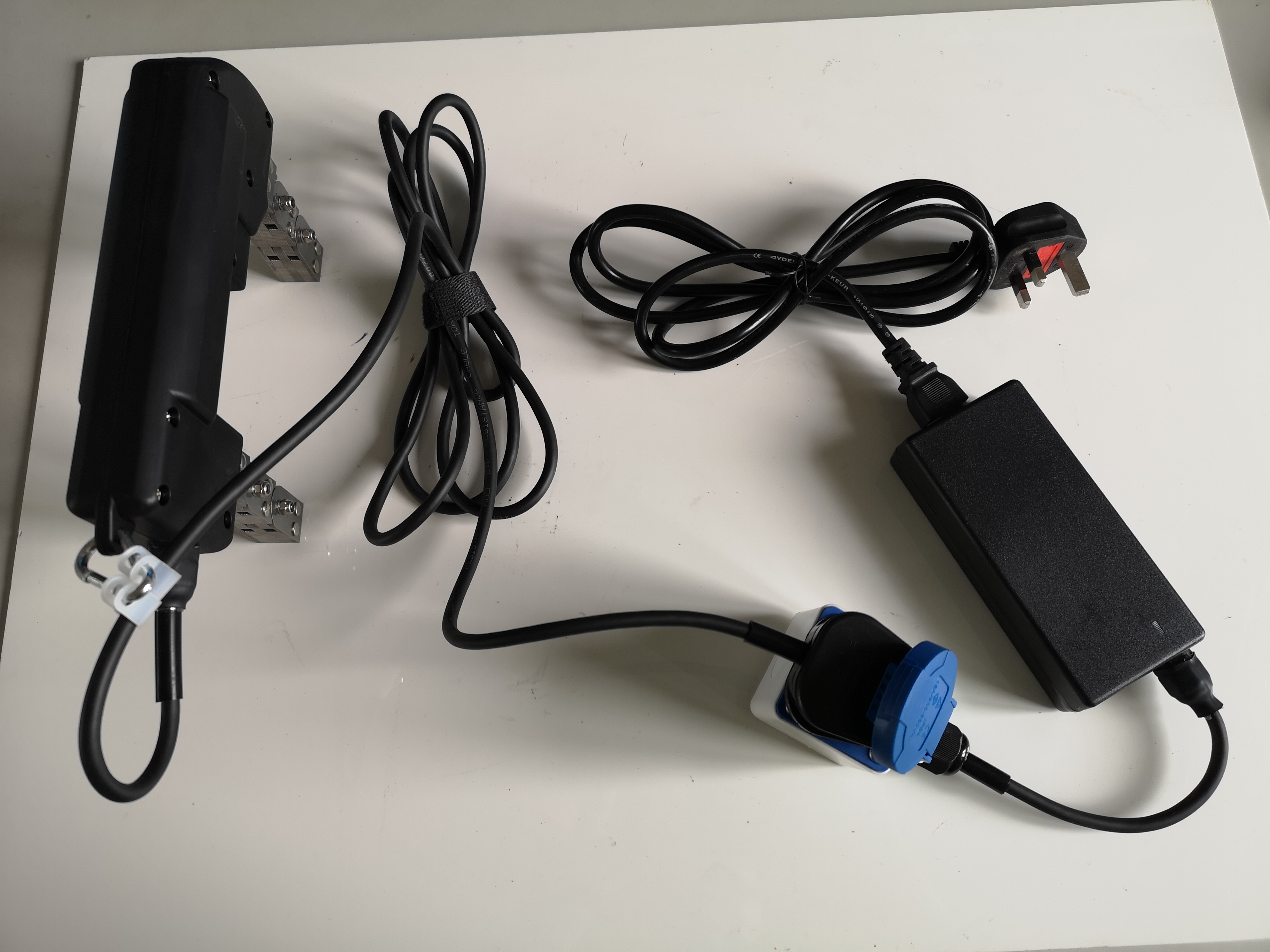

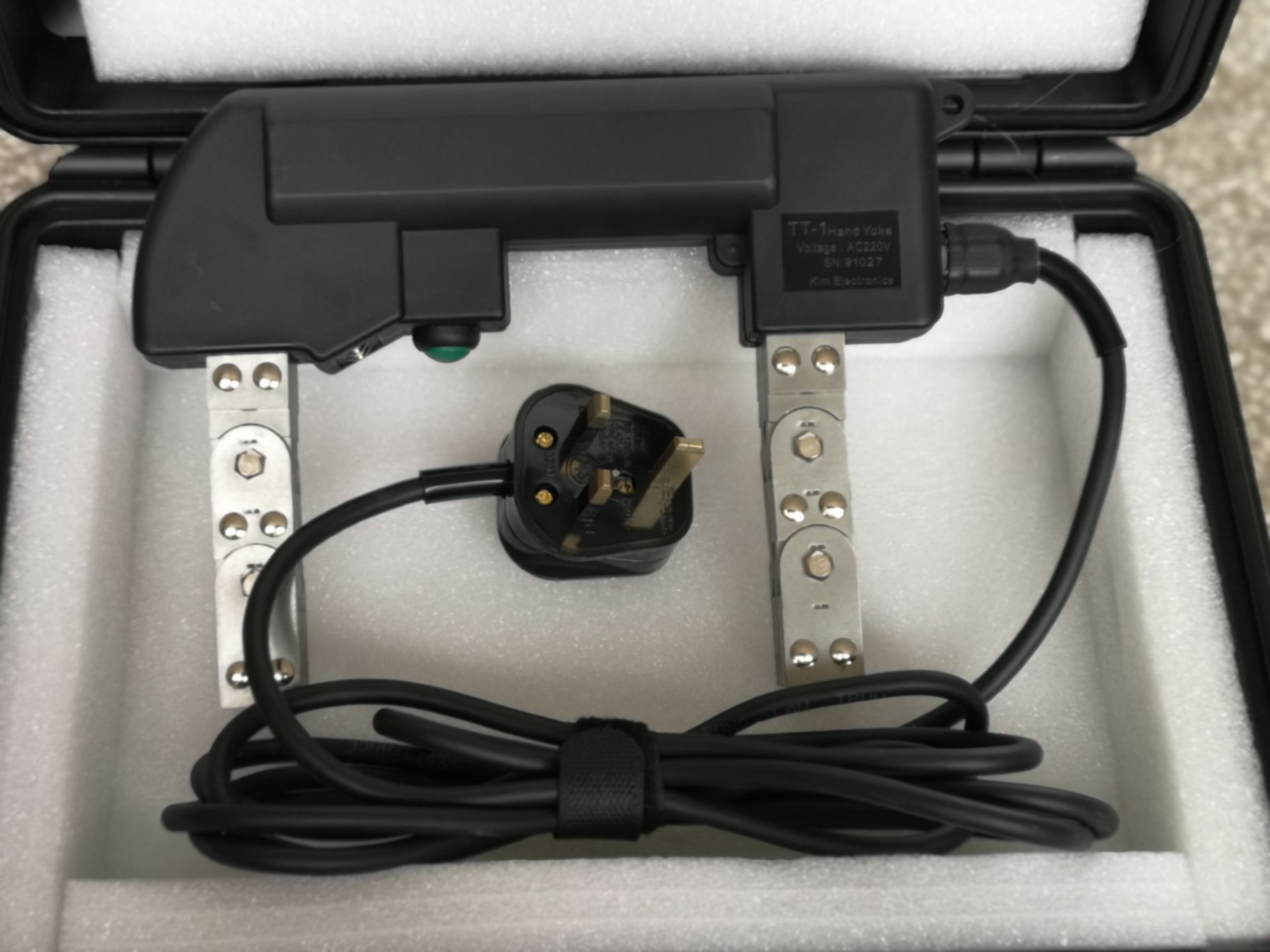

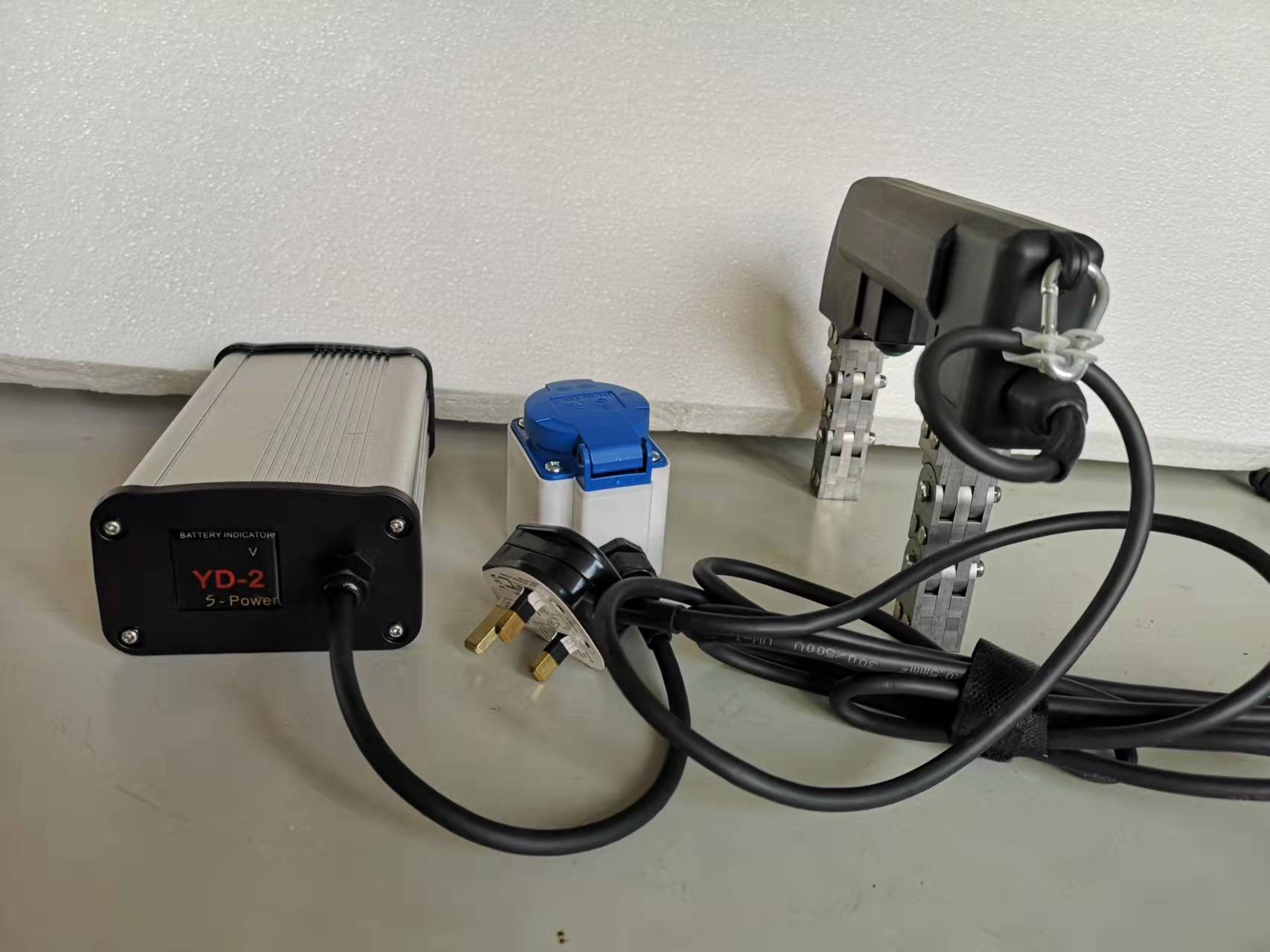

Electromagnetic AC Yoke - With Option of 110VAC and 220/230VAc
Electromagnetic AC Yoke - With Option of 110VAC and 220/230VAc
Electromagnetic AC Yoke - With Option of 110VAC and 220/230VAc
| Electromagnetic Yoke - Range | ||
| Specifications: - Comparsion | ||

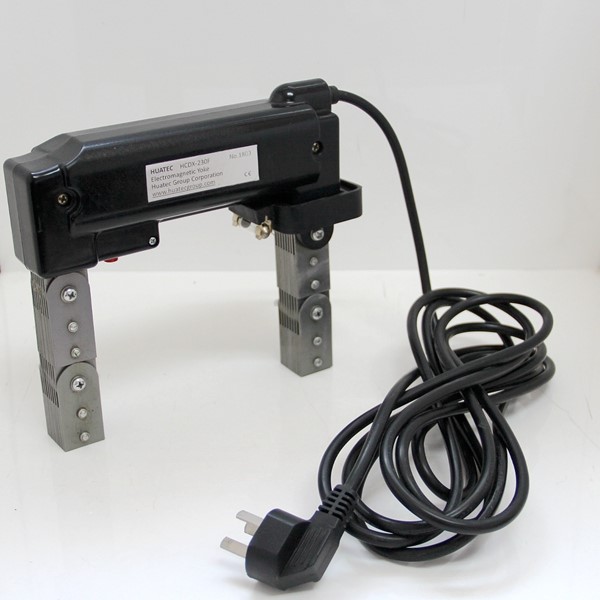

| Product Description | SIHDX 230VAC- ITECH | IT-Q2-230VAC -ITECH |
| Physical - Dimension | ||
| Line Voltage Single Phase | 230 VAC | 230 VAC |
| 50/60 Hz | 50/60 Hz | |
| Line Current | 3:00 AM | 4:00:00 AMP |
| Duty Cycle | Std : : (MaxTest Time) 110Sec On || Min of 110Sec off (+/-Sec) | Std :: (MaxTest Time) 100Sec On / Min of 100Sec off (+/-Sec) |
| Weight - Approx | 2.66 Kg | 1.68Kgs |
| Construction | Polyurethane-filled glass/nylon housing | Polyamide and Glass Fiber |
| 8 foot / 3 wire power cord | 7.5Ft Wire - 3 Core | |
| Pole Span | 0-9 in. across poles | 1.5" - 8.0"across |
| Pole Design | Square , Angle for Corner | Square |
| Lifting Capacity | <4.5Kgs | <4.5Kgs |
| Assistant Light - Optional | Yes Optional | Yes - >3000Lux |
| This instrument [ SIHDX230VAC ITECH || IT-Q2-230VAC ITECH | conforms to the standard requirements of : JB/T7411-2012, ASME BPVC, ASTM E709-01, ASTM E1444-05, ASTM E3024."electromagnetic yoke flaw detector technical condition , All DC Yoke ( Battery Carrying Devices ) are sbuject to Shipping terms & as Permitted by Air freight Movement... | ||
| ** All Specification are Subject to change without prior Notice | ||
____________________________________________________________________

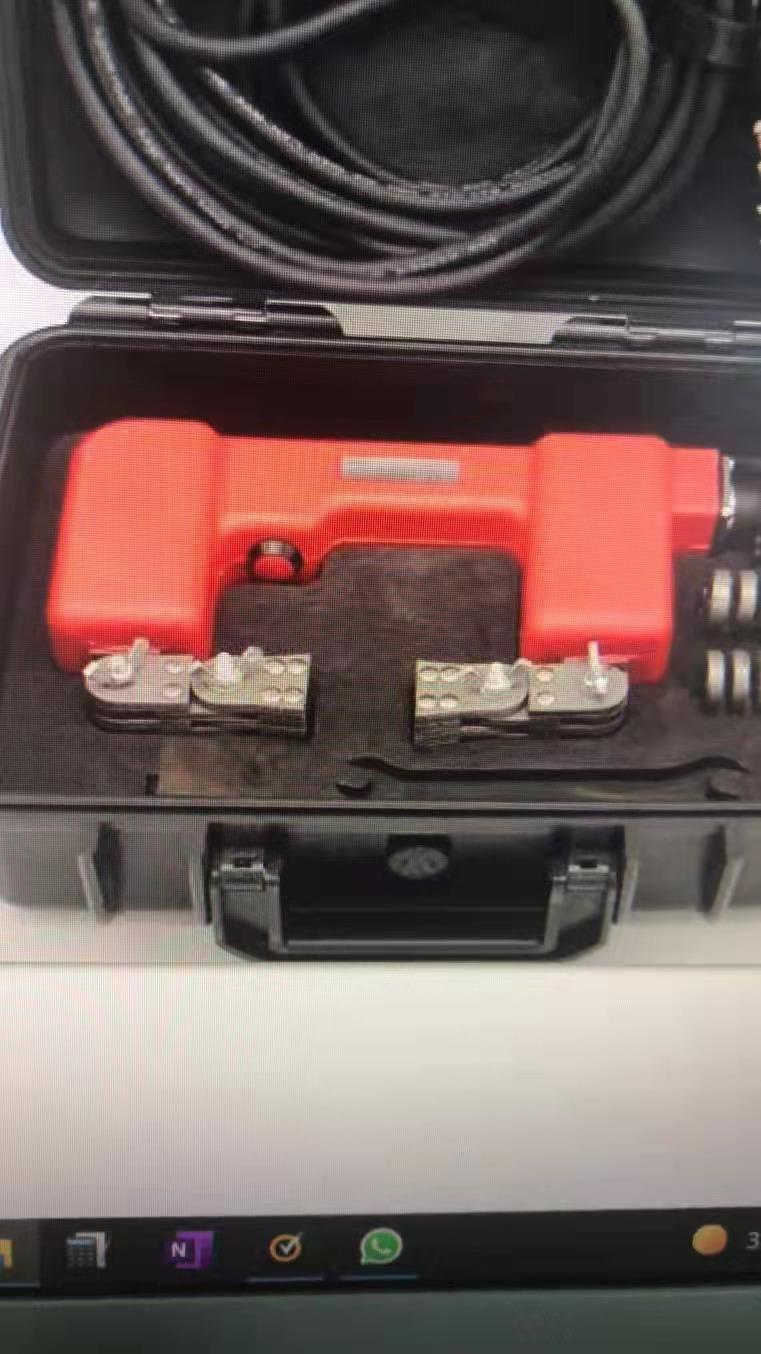

Electromagnetic Yoke IT-Q2-110VAC (30H)
Instrument conforms to the standard requirements of JB/T7411-2012, ASME BPVC, ASTM E709, ASTM E1444, ASTM E3024."electromagnetic yoke flaw detector technical condition".
Technical parameter
Working temperature: -10 ~ +40 C
Storage temperature: -20 ~ 50 C
Relative humidity: <80% non-condensation
Work temperature rise: <18 C
Temporary load rate: >50%
Sensitivity: A1 standard test piece 15/50 groove clearly displayed.
AC minimum power hoisting power: >4.5kg
Model guide
|
Electromagnetic Yoke |
IT-Q2-110VAC (30H) |
|
Electrode spacing |
0~210mm |
|
Maximum current |
2.8A |
|
weight |
1.698 Kg |
|
major function |
Direct alternating current magnetization |
IT-Q2-110VAC
|
Electromagnetic Yoke |
IT-Q2-110VAC (30H) |
|
Electrode spacing |
0~210mm |
|
Working current |
AC 1.4A |
|
Working voltage |
110 / 50Hz |
|
Weight |
1.698Kgs |
|
Working circle |
Max 15 seconds on Min 30 seconds off |
|
Major function |
Direct alternating current magnetization |
|
Size |
208X52X146cm |
_____________________________________________________________________

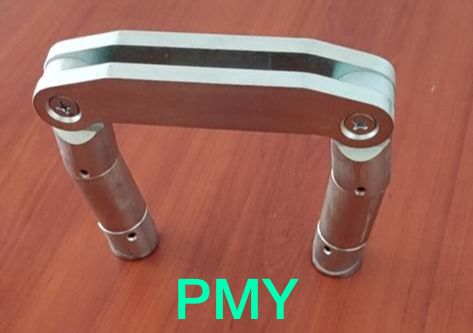

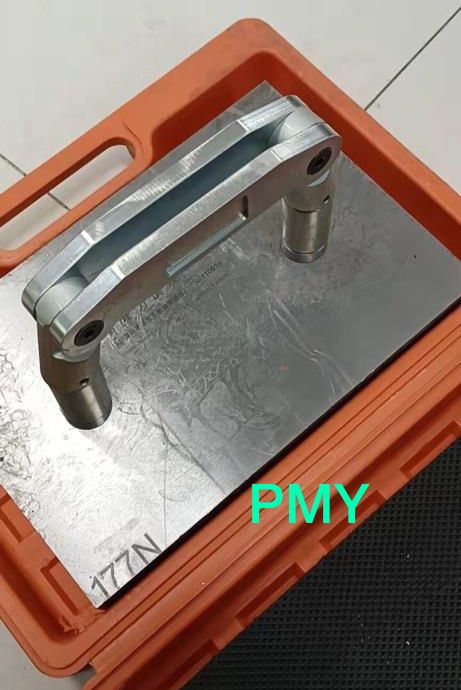

Permanent Magnet Yoke - Model: SIHDX-300PM
Technical Specifications:
Poles Adjustment: 50 – 200 mm
Full ForceApprox. <18.2 Kgs max. at
Weight: 1.58 Kgs
Pole spacing : 200mm
